Ace Instruments Differential Pressure Indicator

Product Description

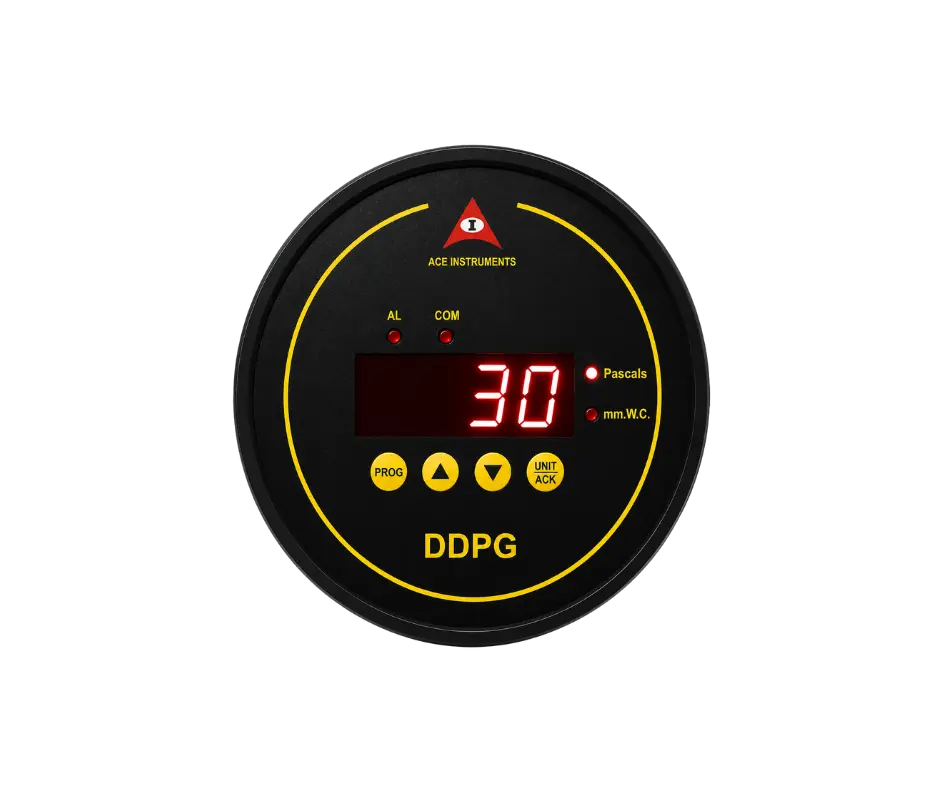

The DDPG Cleanroom Differential Pressure Indicator is a wall-mounted DP monitoring device with a local display showing pressure differential in Pascals. It combines RS485 Modbus output for BMS integration with an alarm relay for pressure deviation, giving facility teams both local visibility and automated notification whenever room pressurisation drifts outside required limits. Designed specifically for cleanroom and controlled environment applications, the DDPG supports pharmaceutical production, hospital operating theatres, isolation rooms, and electronics manufacturing.

‍

Cleanroom Pressurisation Requirements

Maintaining correct pressure differential between adjoining spaces is fundamental to controlling airborne contamination in cleanrooms and critical environments. Pressure differential prevents unwanted air migration between spaces of different cleanliness or biological risk levels, whether that means keeping outside contaminants from entering a clean space or containing hazardous air within an isolation room. Continuous monitoring with local display and alarm relay ensures deviations are caught immediately, before contamination control is compromised

Positive vs Negative Pressure Rooms

Positive pressure rooms, such as cleanrooms and operating theatres, maintain a higher internal pressure than surrounding corridors, preventing contaminated corridor air from entering the controlled space. Negative pressure rooms, such as infectious isolation rooms and microbiology labs, maintain lower internal pressure than surrounding areas, preventing infectious or hazardous air from escaping into adjacent spaces. Getting this direction right, and monitoring it continuously, is essential: a positive pressure cleanroom that drifts negative risks contamination ingress, while a negative pressure isolation room that drifts positive risks infectious air leaking into corridors and other patient areas.

Applications

• Pharmaceutical Production:

  Monitors positive pressure differentials between cleanroom grades to prevent particulate and microbial contamination of manufacturing environments

• Hospital Operating Theatres:

  Maintains positive pressure relative to corridors, protecting the surgical field from contaminated air ingress
• Isolation Rooms:

  Verifies negative pressure containment to prevent infectious air from escaping into hospital corridors and adjacent spaces
• Electronics Manufacturing:

  Monitors cleanroom pressurisation to protect sensitive component production from particulate contamination

Features

• Local Digital Display:
  Real-time differential pressure readout in Pascals for at-a-glance monitoring without needing a BMS connection
• RS485 Modbus Output:
  Enables seamless integration with Building Management Systems for centralized monitoring and data logging
• Configurable Alarm Relay:
  Triggers automatically when pressure differential deviates from the setpoint, supporting rapid response to containment failures
• Positive and Negative Pressure Support:
  Configurable to monitor either pressurisation direction, suited to cleanrooms, operating theatres, and isolation rooms alike
• Wall-Mounted Design:
  Compact enclosure for straightforward installation between adjoining rooms or zones
• Compliance-Ready Monitoring:
  Supports continuous verification against ISO 14644-4, EU GMP, and NHS pressurisation thresholds
• Stable, Accurate Sensing:
  Delivers reliable differential pressure readings suited to critical environments where contamination control cannot be compromised

ISO 14644-4 Compliance

The DDPG supports monitoring requirements aligned with recognized cleanroom and healthcare pressurisation standards:

• ISO 14644-4: Specifies a minimum differential pressure of 12.5 Pa between cleanroom spaces of different classifications
• EU GMP: Requires a differential pressure of 10 to 15 Pa between pharmaceutical manufacturing grades
• NHS Guidance: Specifies -2.5 Pa for negative pressure isolation rooms to ensure reliable containment
• Ministry of Health, Saudi Arabia: References international pressurisation benchmarks (including ISO 14644 and WHO/GMP guidance) for cleanroom and isolation room design in healthcare and pharmaceutical facilities
• FDA: Aligns cleanroom pressurisation expectations with cGMP requirements and ISO 14644 classifications under 21 CFR Part 211, rather than prescribing a separate Pascal figure of its own

Continuous DP monitoring against these thresholds, backed by local display and alarm notification, helps facilities demonstrate ongoing compliance during audits and inspections while catching pressurisation failures before they affect product quality or patient safety.

Frequently Asked Questions (FAQs)

1. What is the AI-DDPG Cleanroom Differential Pressure Indicator?

The AI-DDPG (Digital Differential Pressure Gauge) is a precision differential pressure indicator designed for continuous monitoring of pressure differences between cleanrooms, laboratories, isolation rooms, airlocks, and other controlled environments. It helps maintain the required pressure cascade, ensuring contaminants do not migrate into critical areas and supporting compliance with cleanroom standards.

2. Why is differential pressure important in cleanrooms?

Differential pressure ensures that air flows from cleaner areas to less-clean areas. Maintaining the correct pressure difference helps prevent airborne contaminants from entering controlled environments, protecting products, processes, and personnel.

3. What is the required pressure differential for a pharmaceutical cleanroom?

According to EU GMP guidelines, pharmaceutical cleanrooms should typically maintain a pressure differential of 10 to 15 Pascals (Pa) between adjacent cleanroom grades, such as Grade B and Grade C.

ISO 14644-4 recommends a minimum differential pressure of 12.5 Pa for positive-pressure cleanrooms. Maintaining these pressure differences ensures airflow always moves from the cleaner area to the less-clean area, minimizing the risk of contamination.

4. Where is the AI-DDPG commonly installed?

Typical applications include:

• Pharmaceutical cleanrooms
• Hospital operation theatres (OTs)
• Isolation rooms
• Airlocks
• Sterile manufacturing areas
• Biotechnology laboratories
• Research laboratories
• Semiconductor manufacturing
• Electronics assembly areas
• Food processing cleanrooms

5. What does the AI-DDPG measure?

The instrument continuously measures the pressure difference between two spaces or across filters and displays the value in Pascals (Pa), allowing operators to verify that the required pressure cascade is maintained.

6. What is the measurement range of the pressure indicator?

The AI-DDPG is available in multiple pressure ranges depending on the application.

Typical configurations include:

• 0 to 50 Pa
• 0 to 100 Pa
• Other custom ranges on request

For pharmaceutical cleanroom monitoring, the 0 to 50 Pa range is most commonly used. The display provides 0.1 Pa resolution, enabling precise monitoring of pressure differences required for regulatory compliance.

7. How is the differential pressure indicator connected to a Building Management System (BMS)?

The AI-DDPG provides Modbus RS485 communication, allowing the Building Management System (BMS) to continuously read and record the measured differential pressure.

The instrument also provides potential-free relay contacts for local alarms. If pressure moves outside the preset limits, for example, due to an open cleanroom door or HVAC fault, the relay can activate audible alarms, warning lights, or notify the BMS immediately.

8. Why is continuous pressure monitoring important?

Continuous monitoring allows operators to detect pressure changes immediately, reducing the risk of contamination caused by open doors, HVAC failures, blocked filters, or leakage between controlled areas.

9. Can the AI-DDPG monitor HEPA filter performance?

Yes. Differential pressure monitoring across HEPA filters helps identify:

• Filter loading
• Filter blockage
• Reduced airflow
• Maintenance requirements

This enables predictive maintenance and helps maintain proper airflow within cleanrooms.

10. Can the AI-DDPG be integrated with a Building Management System (BMS)?

Yes. The AI-DDPG supports:

• Modbus RS485 communication
• Alarm relay outputs

This allows seamless integration with:

• Building Management Systems (BMS)
• PLCs
• SCADA systems
• HVAC control systems

11. Does the AI-DDPG have alarm functions?

Yes. User-configurable high and low pressure alarm limits allow the instrument to activate relay outputs whenever pressure falls outside the acceptable range, enabling rapid corrective action.

12. Is the AI-DDPG suitable for continuous monitoring?

Yes. The instrument is designed for reliable 24×7 continuous operation, making it ideal for regulated environments where uninterrupted pressure monitoring is essential.

13. Does the AI-DDPG require calibration?

Periodic calibration is recommended to maintain measurement accuracy and support compliance with pharmaceutical quality systems. ACE Instruments provides calibration support and calibration certificates upon request.

14. Is installation easy?

Yes. The AI-DDPG is designed for simple wall mounting and can be connected to pressure sensing points using flexible tubing, allowing quick installation in new or existing cleanroom facilities.

15. What are the advantages of using the AI-DDPG?

Key benefits include:

• Continuous differential pressure monitoring
• High-resolution 0.1 Pa display
• User-configurable alarm limits
• Modbus RS485 communication
• Relay alarm outputs
• Easy BMS integration
• Reliable industrial-grade performance
• Supports pharmaceutical and healthcare compliance

16. Who typically uses the AI-DDPG?

The AI-DDPG is widely used by:

• Pharmaceutical manufacturers
• Hospital engineering departments
• Cleanroom facility managers
• HVAC contractors
• Building automation integrators
• Biotechnology laboratories
• Semiconductor manufacturers
• Research laboratories
• Quality assurance (QA) teams

17. Why choose ACE Instruments?

ACE Instruments has over 30 years of experience in manufacturing cleanroom monitoring solutions. Customers trust ACE for:

• High-accuracy differential pressure monitoring
• Industrial-grade reliability
• Easy BMS integration
• Customizable configurations
• Calibration support
• Responsive technical assistance
• Proven installations across pharmaceutical, healthcare, biotechnology, and industrial facilities

18. How do I choose the right differential pressure indicator?

Our application engineers can help you select the most suitable AI-DDPG based on your cleanroom classification, pressure range, communication requirements, alarm strategy, and regulatory compliance needs.
