HVAC Differential Pressure Transmitters for AHU & VAV Filter Monitoring

Introduction

In an air handling unit, differential pressure across the filter bank is the most reliable indicator of when a filter needs replacement, far more reliable than a fixed calendar interval, because filter loading depends on actual dust load and runtime, not the date.

Condition-Based Filter Replacement vs Calendar-Based Replacement

Replacing filters on a fixed schedule means either wasting usable filter life by changing too early, or running an overloaded filter that increases fan energy consumption and starves downstream VAV boxes by changing too late. A differential pressure transmitter installed across the filter bank lets facility teams switch to condition-based replacement, triggering a change order only when the measured pressure drop crosses a defined threshold.

Ace Instruments AI-DPTx differential pressure transmitter is used across AHU filter banks precisely for this purpose, and IAQ Detectors instrumentation integrates the reading directly into the building management system for automated alerting.

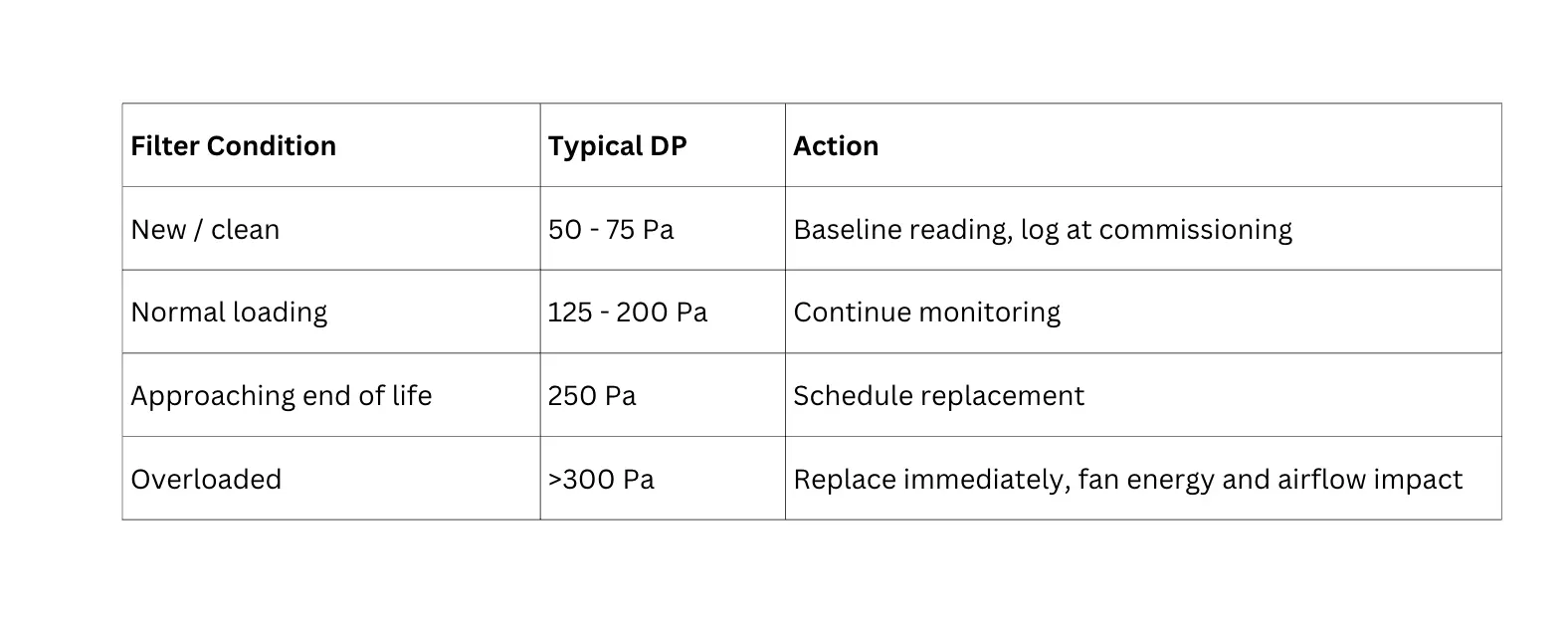

Filter Differential Pressure Thresholds (Typical MERV 13 Bank)

How the Transmitter Is Piped Across a Filter Bank

The AI-DPTx connects via tubing to two static pressure taps, one positioned upstream and one downstream of the filter bank, each mounted away from turbulent zones such as fan discharge or coil sections. The transmitter's diaphragm sensing element measures the pressure drop across the filter directly, converting it into a 4-20mA, 0-10V, or RS-485 Modbus RTU signal that scales linearly with the physical DP reading.

Because the same transmitter architecture serves duct static pressure, room pressurisation, and cleanroom cascade monitoring, facility teams standardise on one instrument family the AI-DPTx  across multiple monitoring points on a single AHU, simplifying spares inventory and calibration procedures.

Field Note

A commercial campus with six AHUs standardized its filter replacement programme on AI-DPTx readings after tracking showed pre-filters were being changed a full month before the measured differential pressure justified it. Switching to condition-based replacement extended average filter life by roughly 30% without any measurable drop in downstream air quality.

Frequently Asked Questions

Why is differential pressure used to monitor HVAC filters?

Differential pressure across a filter rises predictably as particulate loads the media, giving a direct, measurable trigger for replacement that reflects actual filter condition rather than a fixed calendar schedule.

What differential pressure indicates a filter needs replacement?

For a typical MERV 13 filter bank, a differential pressure approaching or exceeding 250–300 Pa generally indicates the filter is overloaded and should be scheduled for replacement, though exact thresholds vary by filter media and manufacturer specification.

Can one differential pressure transmitter monitor multiple points on an AHU?

A single transmitter monitors one differential pressure point, but the same AI-DPTx model can be deployed across multiple points filter bank, coil, and duct static pressure on the same air handling unit for a consistent monitoring standard.

Why Trust IAQ Detectors

The AI-DPTx differential pressure transmitter is manufactured by Ace Instruments under CE certification and ISO 9001:2015; IAQ Detectors instrumentation supports filter and airflow monitoring across more than 1,000 commercial and industrial installations worldwide.
