EU GMP Annex 1 (2022) Pressure Requirements for Pharma Cleanrooms

Introduction

EU GMP Annex 1 (2022) requires that critical pressure differentials between cleanroom grades be continuously monitored and alarmed, not just periodically checked, because a pressure excursion in an aseptic manufacturing area is treated as a contamination control failure with direct product-quality consequences.

What Annex 1 (2022) Changed for Pressure Monitoring

The 2022 revision of EU GMP Annex 1 places continuous monitoring of critical parameters, including differential pressure, at the centre of a facility's Contamination Control Strategy (CCS). Where earlier practice sometimes relied on periodic manual checks, Annex 1 now expects real-time monitoring with alarm functionality for any pressure excursion between Grade A/B aseptic zones and their surrounding areas, with data retained as part of the batch record evidence trail. IAQ Detectors instrumentation is built to support exactly this level of continuous evidence generation.

Ace Instruments supports this requirement with the AI-DDPG/DP1-1 differential pressure indicator and the AI-DPTx transmitter, both of which output continuously to a building management system or environmental monitoring system so that Grade A, B, C, and D pressure relationships are logged without gaps, and alarm thresholds can be configured at the BMS layer.

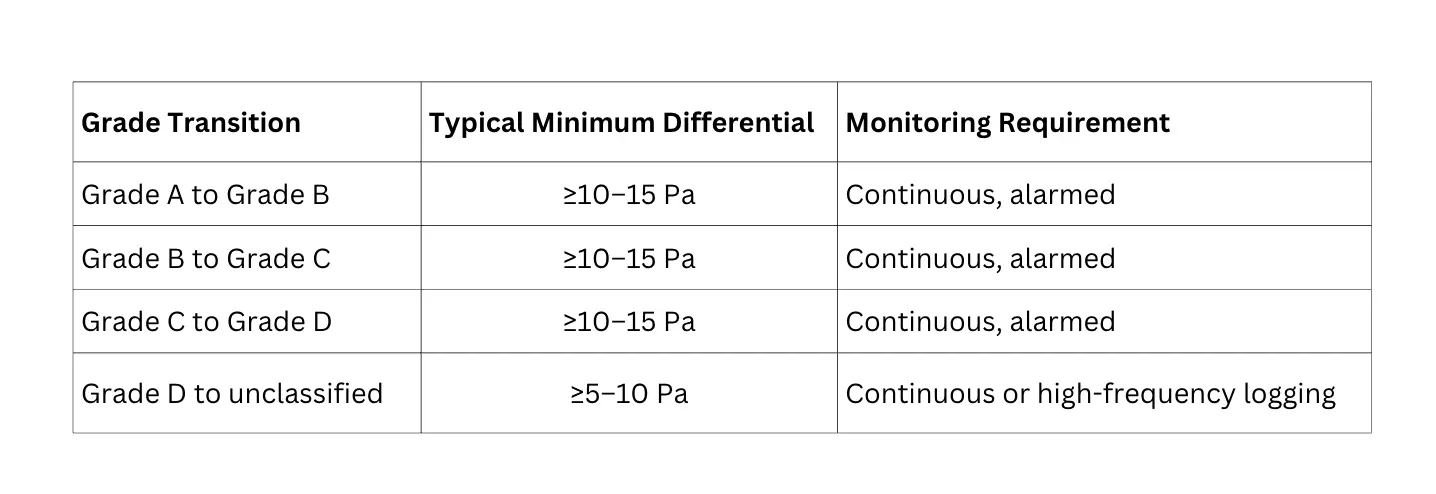

Typical Grade-to-Grade Pressure Cascade (EU GMP Annex 1 Practice)

How Continuous Pressure Monitoring Supports the Contamination Control Strategy

Annex 1 (2022) asks manufacturers to demonstrate that their CCS is a living, data-backed system rather than a paper procedure. A differential pressure transmitter contributes to this by generating an unbroken time-series record: every excursion, its duration, and its resolution are captured automatically rather than relying on an operator's periodic rounds sheet.

The AI-DPTx and AI-DDPG/DP1-1 both use a diaphragm-based sensing element referencing two ports across the grade boundary, with output calibrated for the low, tight ranges Annex 1 environments require. Where a facility needs door-interlock logic preventing simultaneous opening of two doors on an airlock when pressure is out of range the transmitter's 4-20mA or Modbus RTU output feeds directly into the BMS interlock logic.

Field Note

A sterile injectable manufacturer restructured its Grade B corridor monitoring after an Annex 1 gap assessment flagged that pressure was being logged only during shift-change manual rounds. Continuous AI-DPTx monitoring, tied into the facility BMS with a five-minute alarm delay, was commissioned across all Grade A/B/C boundaries; the resulting trend data was cited favourably in the facility's next regulatory inspection as evidence of a mature contamination control strategy.

Frequently Asked Questions

Does EU GMP Annex 1 (2022) require continuous pressure monitoring?

Yes. Annex 1 (2022) expects critical pressure differentials between cleanroom grades to be continuously monitored and alarmed as part of a documented Contamination Control Strategy, rather than checked only periodically.

What pressure differential is typically required between GMP cleanroom grades?

Industry practice under Annex 1 commonly targets a minimum of 10–15 Pa between adjacent grade boundaries such as Grade A/B and B/C, though exact values are set by each facility's own qualification documentation.

Can differential pressure data be used as batch record evidence?

Yes. Continuously logged differential pressure trends from instruments such as the AI-DPTx can be retained as supporting evidence within a facility's environmental monitoring and batch record system.

Why Trust IAQ Detectors

Ace Instruments manufactures the AI-DPTx and AI-DDPG/DP1-1 pressure instruments used across pharmaceutical cleanroom installations; both are CE certified and produced under ISO 9001:2015, and IAQ Detectors instrumentation supports more than 1,000 installations worldwide, including GMP-classified manufacturing environments.
