Product Description

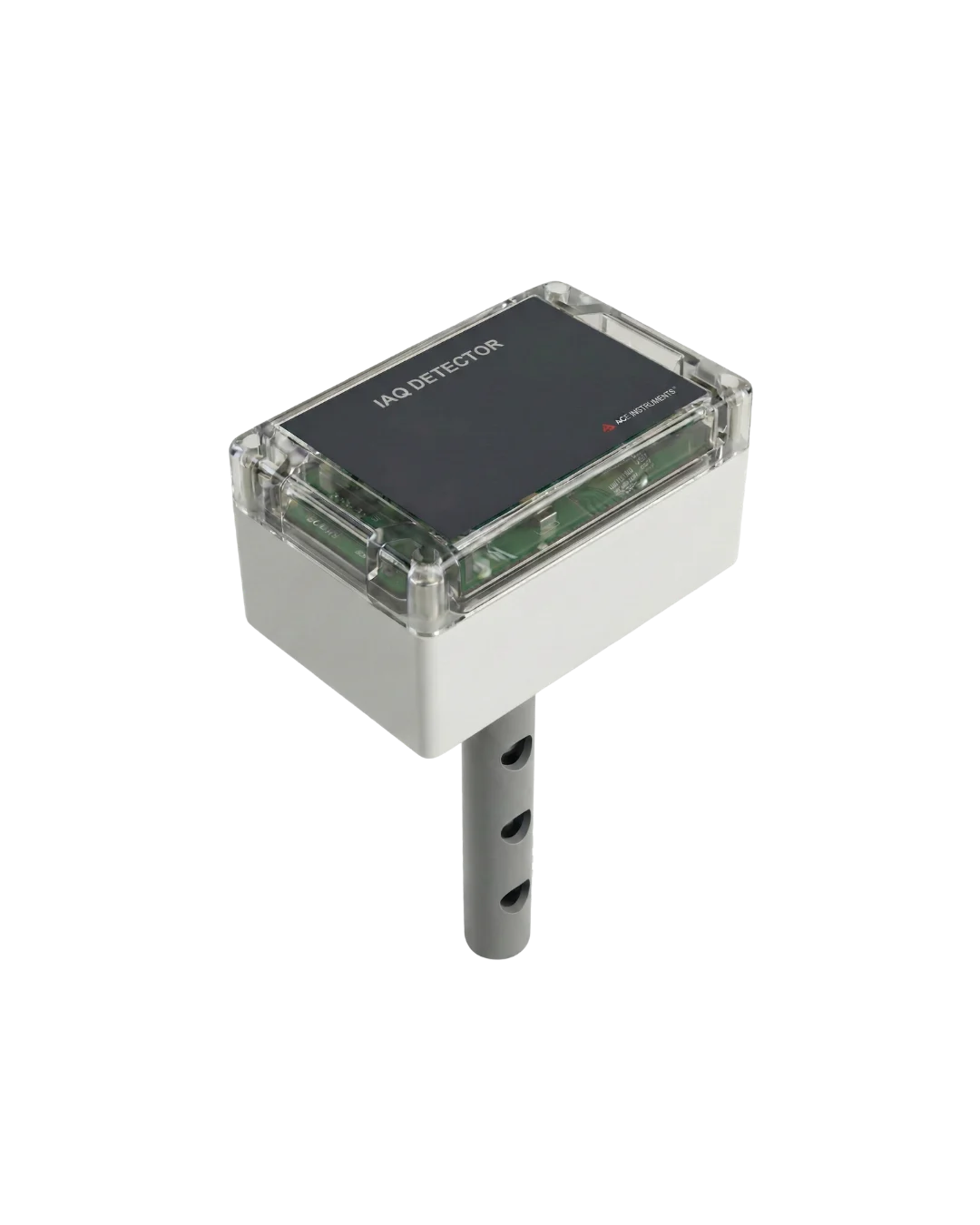

The Ace Instruments duct mounted indoor air quality (IAQ) sensor is designed for installation in green buildings where air is sampled from the HVAC ducts (return air/supply air duct) to enable total IAQ insight. The device is designed to give an overview of the critical IAQ parameters: Particulate Matter PM2.5, Particulate Matter PM10, Volatile Organic Compounds (VOC), Temperature and Humidity.
The device comes equipped with RS-485 Modbus communication, allowing for full visbility over building management systems. The AI-IAQ-D duct mounted indoor air quality series is designed to solve the critical problem of demand controlled ventilation by providing insights into filter clogging status (particulate matter readings), prevailing thermal comfort (temperature & humidity readings) and alerts regarding high VOC content. Facility managers in commercial buildings can proactively manage air quality through early identification of issues, harnessing the power of strategically placed duct mounted indoor air quality sensors.
With placement in return air ducts, the AI-IAQ-D represents the quality of the air being supplied to the occupants in real time. Through insight into a wide variety of IAQ parameters, the duct mounted air quality monitor enables the implementation of a demand controlled ventilation system that takes into account a more comprehensive picture of air quality. The DCV can introduce fresh air based on inputs for fine particulates/dust in the air, VOCs from chemicals/fragrances/smells, and humidity control. This enhances energy savings while optimizing air flow in areas that have reasons other than high occupancy to have fresh air introduced.
The AI-IAQ series is designed to support users in meeting a range of regulatory requirements, including: LEED, WELL, ASHRAE 62.1, Estidima, Mostadam, GRIHA, BREEAM, NABERS, Green Star, CASBEE, Green Mark.
Features
- Multi-parameter IAQ monitoring: The duct mounted indoor air quality transmitter consolidates key indoor air quality parameters in one device (PM2.5, PM10, VOC, Temperature, Humidity) providing well-rounded IAQ insight to users and replacing the need for multiple sensors for individual parameters.
- RS-485 Modbus communication: To offer ease of connectivity and powerful insights, the AI-IAQ-D connects to your BMS system over RS485 Modbus communication. Data is available 24x7 on BMS systems and can be processed for proactive IAQ maintenance.
- Reliable on-device air sampling: To ensure precise readings, this device employs a probe inserted directly into the HVAC duct that leverages the Venturi effect to circulate air samples. Air is forced through intake vents, directed internally across the IAQ sensor for analysis, and then expelled through exhaust vents on the opposite side, creating a continuous and accurate sampling loop.
- Durable ABS plastic duct mounting enclosure: The sensor is suited to withstand the working conditions in HVAC ducts with durable ABS material used for the enclosure and the probe attachment. A duct mounting bracket is provided for reliable and secure mounting onto HVAC duct systems.
Specifications
{{table-component}}
Frequently Asked Questions
- Where should the AI-IAQ-D be installed?
A: The AI-IAQ-D Duct Indoor Air Quality Sensor is suited for return air HVAC duct installation (it can be installed in any duct if comparative difference between return & supply air would like to be measured). To ensure optimal readings, please ensure to install the sensor in an accessible, straight section of the duct, ensuring it is positioned at least five feet away from corners or obstructions that might disrupt airflow. Additionally, select a location that protects the detector from excessive vibrations and sudden temperature shifts to maintain accurate operation.
- How do I get the readings from the duct air quality monitor?
A: The AI-IAQ-D sensor is capable of communicating the readings for all parameters to building management systems via the industry standard protocol of RS-485 Modbus.
- Does the AI-IAQ-D come with a warranty?
A: As manufacturers, we at Ace Instruments provide users with a minimum 12 month warranty on any device purchased from us. Reach out to our team at sales@iaqdetectors.com or +91-8121025651 (also on WhatsApp) to know our pricing, our warranty and we will be happy to assist.
- Is this in-duct air quality monitor suitable for homes, schools and offices?
A: Yes, the duct air quality transmitter can be installed in any commercial or residential building with an HVAC ducting system or a BMS system. In case you are looking for a prominent, wall mounting solution please ensure to look at the details of: 6-in-1 indoor air quality monitor.
