Particulate Matter Monitoring for Data Centre Free Cooling and Filtration

Introduction

Free cooling economisers bring outside air directly into a data centre's cooling path to reduce mechanical cooling load, but that same outside air carries whatever particulate is in the local atmosphere, making continuous PM1, PM2.5, and PM10 monitoring a practical requirement rather than a compliance formality wherever free cooling is used.

Why Free Cooling Raises the Filtration Stakes

A data centre running mechanical cooling exclusively controls its air quality almost entirely through its own recirculating filtration loop. Once free cooling is introduced, outside air quality becomes a direct input to the environment surrounding sensitive electronics, and particulates that would otherwise never reach the white space can enter through the economiser path, especially during dust events, agricultural burning season, or nearby construction activity.

Ace Instruments AI-PM-D particulate matter detector measures PM1, PM2.5, and PM10 by laser scattering with programmable alarms, giving facility teams a continuous, three-fraction view of outside air quality at the free cooling intake a monitoring point the IAQ Detectors range treats as essential wherever economiser cooling is deployed.

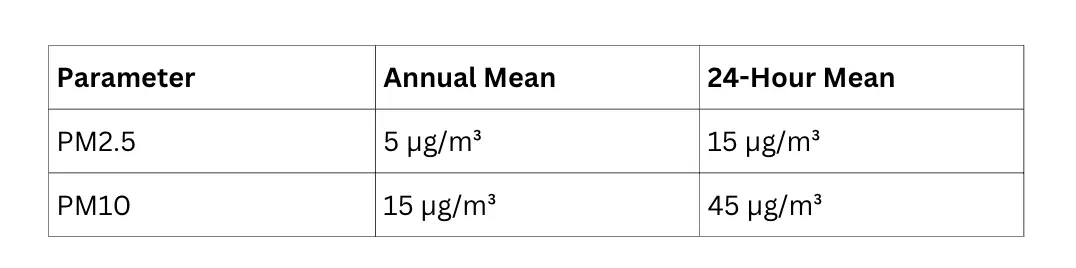

WHO 2021 Particulate Matter Guidelines (Reference for Intake Air Quality)

How Laser Scattering Measures Three Particle Fractions at Once

The AI-PM-D draws a small air sample past a laser source; particles in the sample scatter the light, and the pattern and intensity of that scattering is used to size and count particles across the PM1, PM2.5, and PM10 fractions simultaneously. Because all three fractions are reported from one continuous measurement, a facility team can see not just whether particulate levels are elevated, but which size fraction is driving the change useful for distinguishing between fine combustion-related particulate and coarser dust.

Programmable alarms on the AI-PM-D allow a facility's control system to trigger a response automatically when outside air PM crosses a defined threshold commonly switching the economiser from free cooling into recirculation mode, or increasing filtration stage engagement, without waiting for a manual check of outside conditions.

Field Note

A data centre using free cooling for roughly eight months of the year saw its AI-PM-D readings spike sharply during a regional dust event that coincided with a construction project directly upwind of the outside air intake. The programmable alarm triggered an automatic switch to recirculation mode within minutes, and the facility avoided drawing several hours of elevated particulate into its cooling path before the event subsided.

Frequently Asked Questions

Why does free cooling increase the need for particulate matter monitoring?

Free cooling economisers bring outside air directly into the cooling path, so whatever particulate is present in the local atmosphere becomes a direct input to the data centre environment, unlike a fully mechanical cooling system that relies only on recirculated, pre-filtered air.

What does the AI-PM-D measure?

The AI-PM-D measures PM1, PM2.5, and PM10 simultaneously using laser scattering, with programmable alarms for automated response when readings cross a defined threshold.

What are the WHO 2021 guideline levels for PM2.5 and PM10?

The WHO 2021 Air Quality Guidelines recommend an annual mean of 5 µg/m³ and a 24-hour mean of 15 µg/m³ for PM2.5, and an annual mean of 15 µg/m³ and a 24-hour mean of 45 µg/m³ for PM10.

Why Trust IAQ Detectors

The AI-PM-D particulate matter detector is manufactured by Ace Instruments under CE certification and ISO 9001:2015, using Swiss particulate matter measurement technology; IAQ Detectors instrumentation supports free cooling and filtration monitoring across more than 1,000 commercial and industrial installations worldwide.
